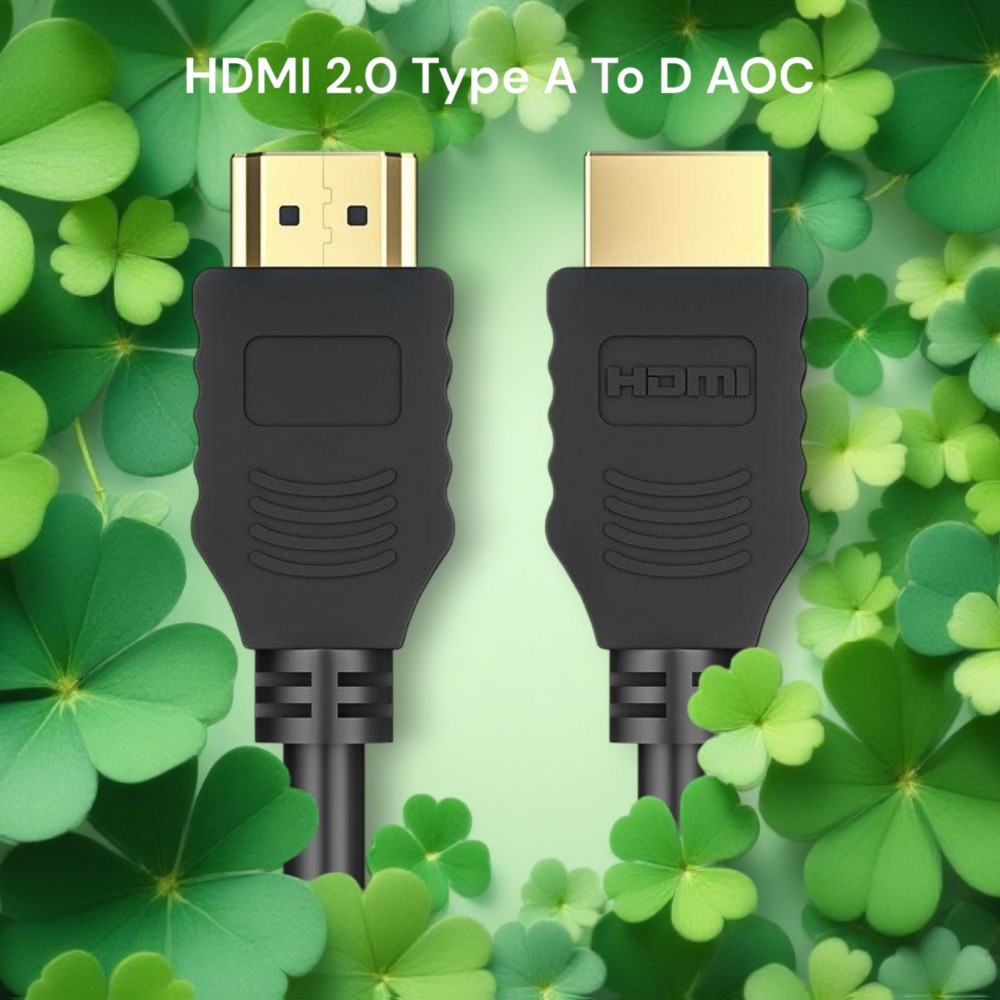

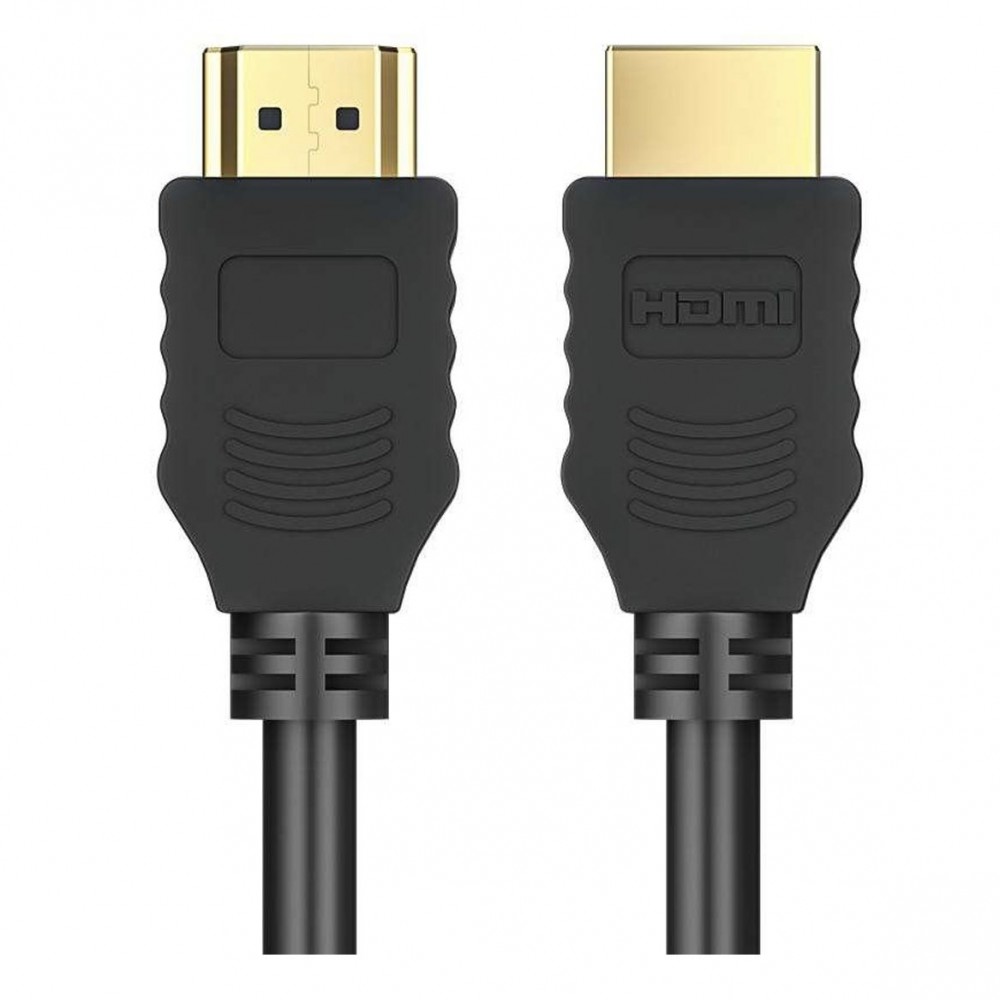

NTH HDMI 4K Copper Cables

Reference:

Condition: New

The NTH HDMI copper wire adopts a pure copper core design, which has high signal transmission efficiency and can achieve smooth operation 4K@60Hz Audio and video playback with resolution.

More details

18000 Item Items

RM288.00 tax excl.

Lenght

warranty

Quantity

Remove this product from my favorite's list.
Add this product to my list of favorites.
Share on Facebook!
Print

By buying this product you can collect up to 46 loyalty points. Your cart will total 46 loyalty points that can be converted into a voucher of RM9.20.

Download

NTH HDMI 4K Copper Cables

Download (688.4k)

Data sheet

Type(s)	19Pin male HDMI
Contacts	Gold plated Contacts
Outside Diameter	6.0mm/6.5mm
Coating materials	PVC

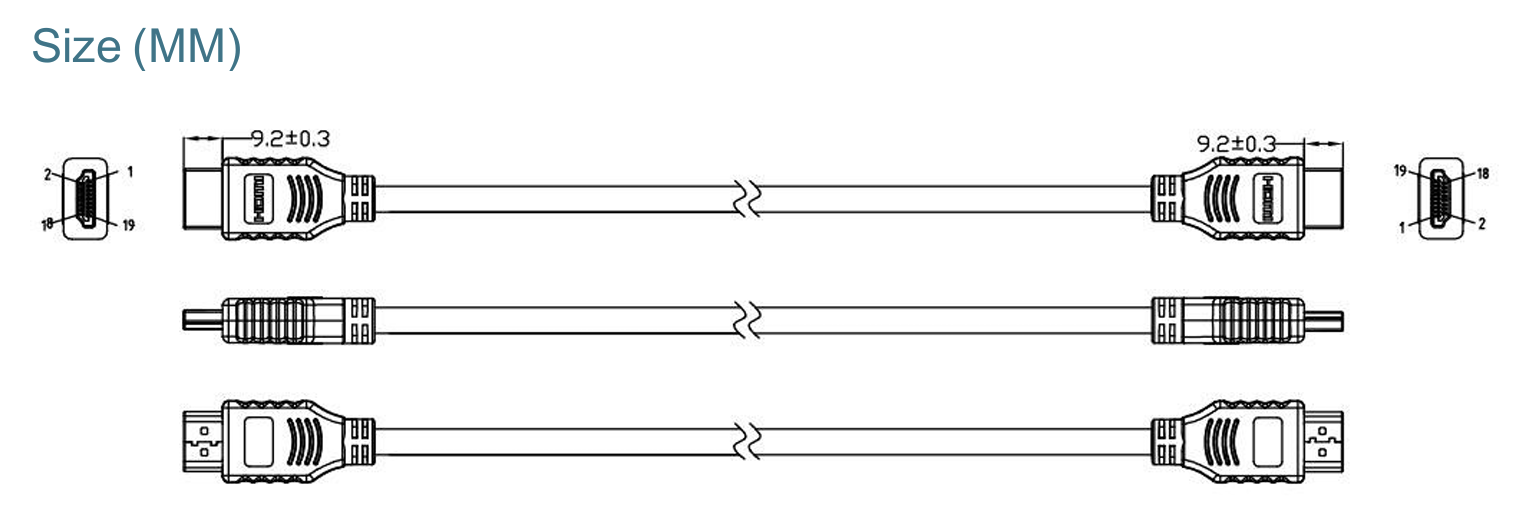

On-resistance	See drawings
Insulation resistance	10MΩ/min
Safety Materials	Warranty Aluminum foil+braid+copper core
Warranty	1 year

More info

The NTH HDMI copper wire adopts a pure copper core design, which has high signal transmission efficiency and can achieve smooth operation 4K@60Hz Audio and video playback with resolution; The connector adopts a gold plating process, which can be used for a long time and is not easy to rust, improving durability and stability; Combined with aluminum foil and mesh shielding design, it has stronger anti-interference ability and more stable transmission; The wire body is made of PVC high- strength material, which is wear-resistant and resistant to bending, making home wiring more reassuring.

Features:

Support resolutions up to 4K@60Hz with full bandwidth reach up to 18Gbps.
Support HDCP/HPD.
19Pin male HDMI connector.
Plug and Play.

INSPECTION REQUIREMENTS:

1.100% Open, Short & Miswire Test.
2. Insulation Resistance:10MΩ/MIN.ATDC300V/10ms.
3. The finished product needs to pass 3840* 2160@60Hz Real machine testing, audio and video transmission is normal, without black screen, snowflakes, white dots, flashing screen, and other phenomena.
