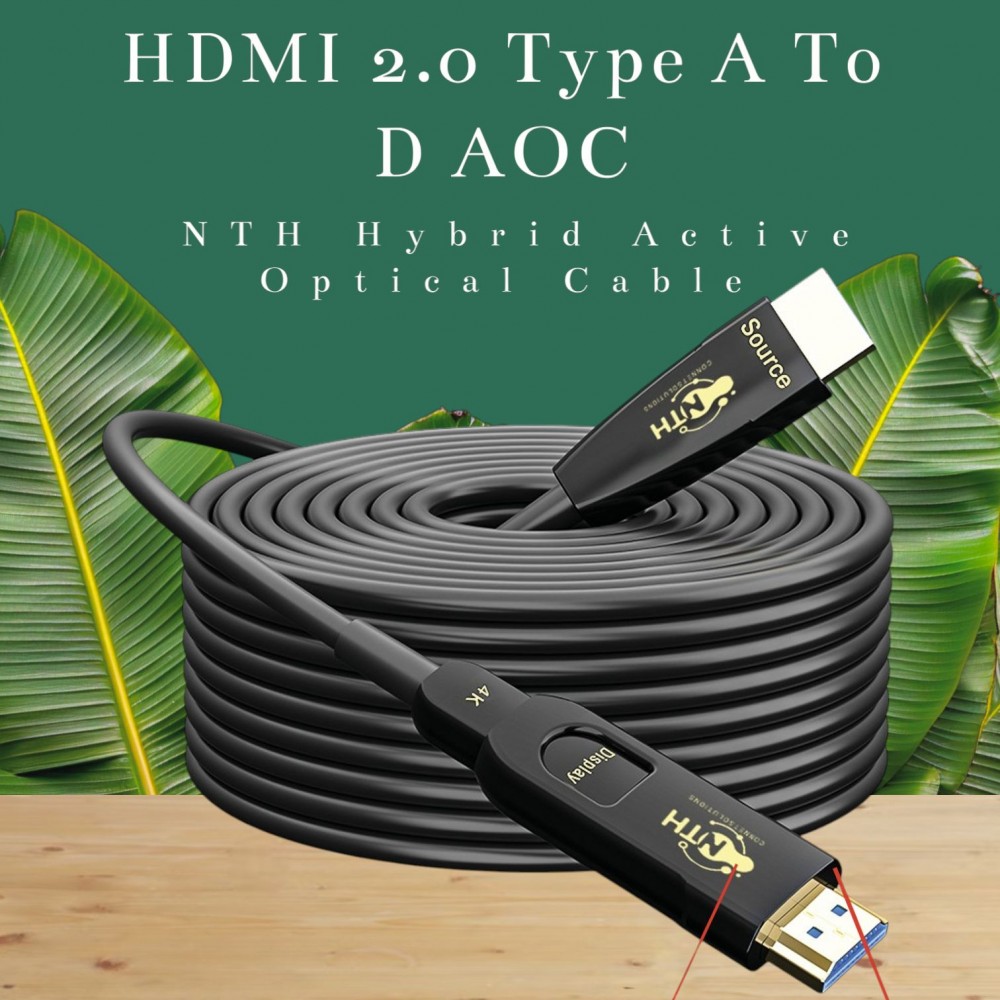

HDMI 2.0 Type A To D AOC

NTH Hybrid Active Optical Cable

NTH 4K HDMI Type A-Type D AOC is a superior performance solution for easily extending 4K high resolution HDMI digital signals to incredible distance, the convenient HDMI Type D female to Type A male connector makes it easier for cables to pass through small pipes for installation and wiring, NTH's hybrid fiber optic technology enables a fully 4K compliant transmission at the same time RFI and EMI interference are kept to minimum. NTH's lightweight and flexible HDMI cables are widely used in different short and long distance connections such as 4KTV, video conference, public cinema, outdoor billboard installation etc.

FEATURES

• 850nm VCSEL, PIN, lens platform.
• 4K HDMI 4K @60Hz and full bandwidth of 18Gbps.
• Variety of AOC cable lengths are available, up to 200m (650 ft.).
• Lightweight and flexible AOC hybrid cable with 5mm bend radius.
• Supports HDCP2.2, ARC and CEC.
• Plug and play, no external power supply required Excellent EMI/RFI protection.
• Paired with HDMI Type D female to Type A male adapter.

HANDLING AND CARE

The optical energy is fully contained within the cable and end housings—no optical emissions are exposed to the user.

CAUTION:
Do not cut the optical cable. Viewing the cut fiber ends—especially with optical instruments such as eye loupes, magnifiers, or microscopes—may present an eye hazard.

This product is classified as a Class 1 Laser Product in accordance with IEC 60825-1:1993 + A1 + A2 and complies with 21 CFR 1040.10 and 1040.11, with deviations as outlined in Laser Notice No. 50, dated June 24, 2007.

Use or modification of this device outside the specifications provided may result in hazardous radiation exposure. To ensure compliance with laser safety standards, the cable must be operated within the specified environmental conditions.

Warning: Any tampering or unauthorized modification of this device will void the product warranty.
